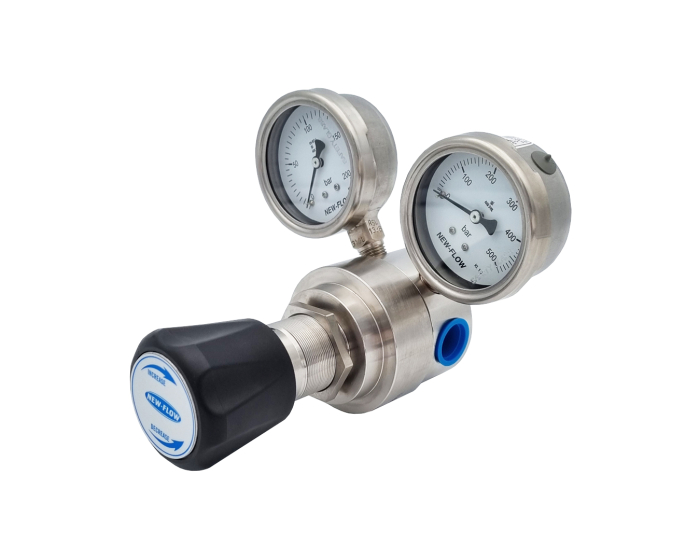

The pressure reducing valve type PRU 175 with stainless steel piston is designed for the outlet pressure function of gases and liquids up to 400 bar.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S107376 |
| ATEX compatible | No |
| CE_CERT | CE |
| Connections | NPT FF |
| In categories | Pressure reducing valves |
| Body material | Stainless steel 316 (1.4401) |
| Kv (m³/h) | 0.17 |
| MAAT | 1/2'' |
| Option certificate 3.1 | Yes |
| PS (bar) | 240 |
| SKU | 2420032SE |
| TS max (°C) | 75 |
| TS min (°C) | -25 |
| Warranty period | 1 year |
| Downstream pressure range (bar) | 0 / 170 |
